High Frequency Separable Connectors 200 A 15 KV Elbow Arrester Surge Arrester For Panel

Product Details:

Place of Origin:	China
Brand Name:	CY-Group
Certification:	KEMA CE ISO SGS TUV UC3
Model Number:	CYS-ASZT—YH5WS-17

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	NEGOTIABLE
Packaging Details:	Plymood
Delivery Time:	3-8 days
Payment Terms:	L/C, TT,D/A,D/P
Supply Ability:	6000000pcs/year

Contact Now

Detailed Product Description

Material:	RUBBER	System Nominal Voltage (kV):	15 KV
Voltage Class (Um) (kV):	17	Max. Continuous Operating Voltage (kV):	13.6
Voltage Of DC 1mA Current (kV):	≥25	DC Withstand Voltage 15min:	35 KV
Lightning Impulse Residual Voltage (kV):	≤50.0	Steep Current Residual Voltage (kV):	≤57.5
Frequency:	High Frequency
High Light:	plastic tee connector , straight connector

Separable Connector 200 A 15 kV Elbow Arrester Surge Arrester for panel

Application

Chuangyin® Elbow Arrester is widely applicable for connecting underground XPLE cable to packaged substation, RMU, cable branch box, buried transformer and leads of other HV equipments equipped with loadbreak bushings, junctions, or connectors in 200 A power network. Combines metal oxide varistor module in a rubber elbow to provide overvoltage system protection.

The interface complys with IEEE standard 386, 8.3/14.4 kV, and 15.2/26.3 kV 200 A loadbreak design.

Features

Made of high quality EPDM rubber and metal oxide

Fully shielded and insulated

Protecting electrical components against over-voltage and transients

The connected braid to manage short circuit currents

100% factory tested

In compliance with IEC 60099.4-2006, JB/T 8952

Construction

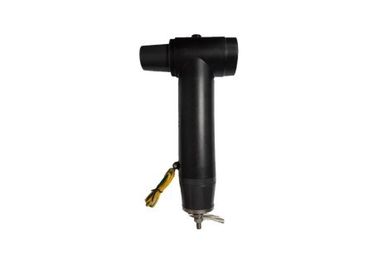

High Frequency Separable Connectors 200 A 15 KV Elbow Arrester Surge Arrester For Panel 0

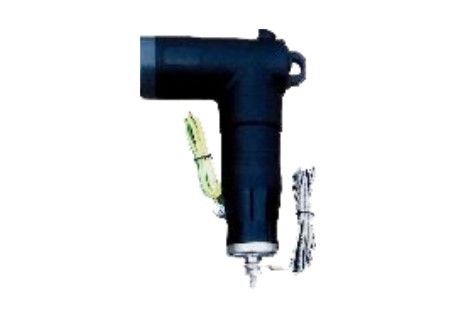

High Frequency Separable Connectors 200 A 15 KV Elbow Arrester Surge Arrester For Panel 2 1. Insulating Layer

2. Conducting Shield

3. MOV Module

4. Arrester Cap

5. Grounding Wire

Technical Data

Item	YH5WZ-17/45	YH5WS-17/50
System Nominal Voltage (kV)	15	15
Max. Voltage Class (Um) (kV)	17	17
Max. Continuous Operating Voltage (kV)	13.6	13.6
Voltage of DC 1mA Current (kV)	≥24	≥25
Lightning Impulse Residual Voltage (kV)	≤45.0	≤50.0
Steep Current Residual Voltage (kV)	≤51.8	≤57.5
Switching Impulse Residual Voltage (kV)	≤35	≤42.5
Long Duration Current Impulse Withstand (A)	150	100
High Current Impulse Withstand (kA)	65	65
5min EPDM Insulation Housing Withstand (kV)	39	39
