Detailed Product Description
Material: RUBBER Voltage Class: 15 KV
Voltage Rating: 8.3/14.4 KV Rated Current: 200 A
AC Withstand Voltage 5min: 39 KV DC Withstand Voltage 15min: 35 KV
Partial Discharge: 15 KV, ≤10 PC BIL: 95 KV
Thermal Current: 10 KA, 0.6 S Dynamic Current: 20 KA, 10 Ms
Cable Section: 35 To 120mm2
Highlight:

plastic tee connector

,

coupling connector

Separable Connectors--Cable Connector 600A, 15 kV and 25 kV Class Insulated Cap

Application

Chuangyin® Insulated Cap is widely applicable for terminating and insulating energized bushings, including bushing inserts, loadbreak junctions, feed-thru inserts, etc. in 200 A power network.

The interface complys with IEEE standard 386, 8.3/14.4 kV and 15.2/26.3 kV, 600 A deadbreak design.



Features

Made of high quality EPDM rubber

Fully shielded, insulated and submersible

Terminating and insulating cap 15 kV and 25kV 200 A energized interfaces

100% factory tested

In compliance with IEC standard 386



Construction

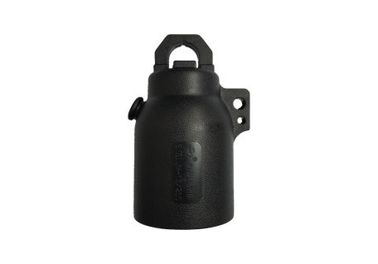

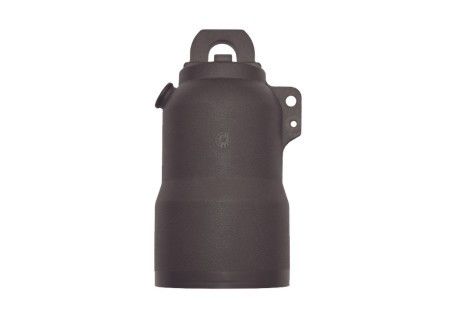

Separable Connectors / Cable Connector 600A , 15 kV and 25 kV Class Insulated Cap 0Separable Connectors / Cable Connector 600A , 15 kV and 25 kV Class Insulated Cap 1

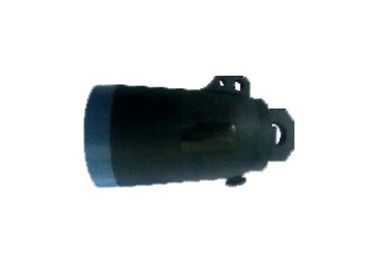

Separable Connectors / Cable Connector 600A , 15 kV and 25 kV Class Insulated Cap 21. Operating Eye

2. Insulating Layer

3. Semi-conducting Shield

4. Bolt

5. Grounding Tab



Technical Data

Voltage Class 15 kV 25 kV
Voltage Rating 8.3/14.4 kV 15.2/26.3 kV
Rated Current 600 A 600 A
AC Withstand Voltage 5min 39 kV 54 kV
DC Withstand Voltage 15min 35 kV 48 kV
Partial Discharge 15 kV, ≤10 pC 20 kV, ≤10 pC
BIL 95 kV 125 kV
Thermal Current 23 kA, 2 s 23 kA, 2 s
Dynamic Current 84 kA, 10 ms 84 kA, 10 ms



Kit Contents

Insulated Cap

Wipers

Silicone Grease

Installation Tools

Installation instruction

Certificate



Ordering Instructions

Product Part Number
15kV, 600A Insulated Cap CYS-A(S)JM-15/600
25kV, 600A Insulated Cap CYS-A(S)JM-25/600
