Rubber Separable Connectors 200a , 15kv Class Loadbreak Junction

Product Details:

Place of Origin:	China
Brand Name:	CY-Group
Certification:	KEMA CE ISO SGS TUV UC3
Model Number:	CYS-A(S)T-15/600

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	NEGOTIABLE
Packaging Details:	Plymood
Delivery Time:	3-8 days
Payment Terms:	L/C, TT,D/A,D/P
Supply Ability:	6000000pcs/year

Contact Now

Detailed Product Description

Material:	RUBBER	Voltage Class:	15 KV
Voltage Rating:	8.3/14.4 KV	Rated Current:	600 A
AC Withstand Voltage 5min:	39 KV	DC Withstand Voltage 15min:	35 KV
Partial Discharge:	15 KV, ≤10 PC	BIL:	95 KV
Thermal Current:	23 KA, 2 S	Dynamic Current:	23 KA, 10 Ms
High Light:	plastic tee connector , coupling connector

Separable Connectors 200A, 15kV Class Loadbreak Junction with Competitive Price

Application

Chuangyin® Deadbreak Junction is widely applicable for connecting in pad-mounted apparatus, under-ground vaults, and other apparatus to sectionalize, establish loops, taps, or splices, and to facilitate apparatus changeouts. It has two or more interconnected bushing and/or bushing well interfaces.

The interface complys with IEEE standard 386, 8.3/14.4 kV, 600 A deadbreak design.

Features

Made of high quality EPDM rubber

With two or more interconnected bushing and/or bushing well interfaces

Fully shielded connection for deadbreak system

100% factory tested

In compliance with IEC standard 386

Construction

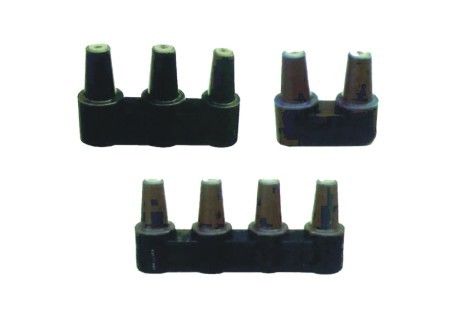

Rubber Separable Connectors 200a , 15kv Class Loadbreak Junction 0

Rubber Separable Connectors 200a , 15kv Class Loadbreak Junction 1

1. Probe

2. Insulating Layer

3. Semi-conducting Shield

4. Bus-bar

Technical Data

Item	Parameters
Voltage Class	15 kV
Voltage Rating	8.3/14.4 kV
Rated Current	600 A
AC Withstand Voltage 5min	39 kV
DC Withstand Voltage 15min	35 kV
Partial Discharge	15 kV, ≤10 pC
BIL	95 kV
Thermal Current	23 kA, 2 s
Dynamic Current	23 kA, 10 ms
