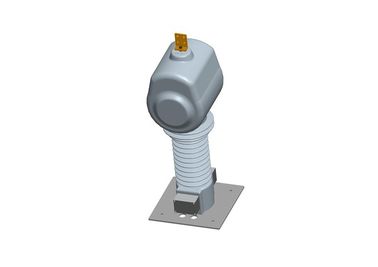

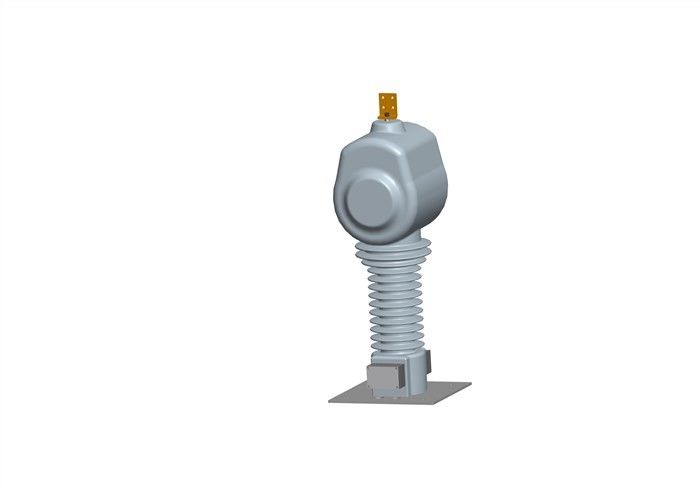

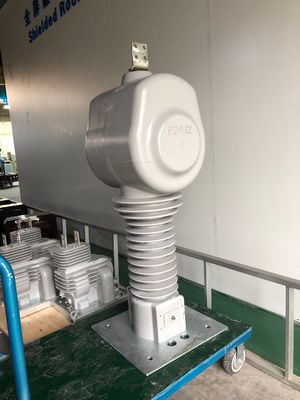

Multifunctional 52kV Medium Voltage Dry Type Transformer Long Service Life

Multifunctional 52kV Medium Voltage Dry Type Transformer Long Service Life

  • Multifunctional 52kV Medium Voltage Dry Type Transformer Long Service Life
  • Multifunctional 52kV Medium Voltage Dry Type Transformer Long Service Life
  • Multifunctional 52kV Medium Voltage Dry Type Transformer Long Service Life
Multifunctional 52kV Medium Voltage Dry Type Transformer Long Service Life
Product Details:
Place of Origin: China
Brand Name: Shenzhen Chuangyin Co., Ltd
Certification: KEMA/type test report
Model Number: JDZXW-52
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negetiable
Packaging Details: Plywood
Delivery Time: 8days
Payment Terms: L/C, T/T
Supply Ability: 36,000.00pcs per year
Contact Now
Detailed Product Description
Insulation Type: Dry Type/Epoxy Resin Type Voltage: 52/46kV
Application: Outdoor Properties: Single Phase
Highlight:

medium voltage transformer

,

medium voltage potential transformer

52kV outdoor MV PT epoxy resin full-closed for measuring and protective relaying 50/60Hz



Chuangyin Voltage Transformer-JDZXW-52



Basic technical data:


1. Installation: outdoor
2. Insulation type: dry, epoxy cast
3. Highest voltage for equipment Um (r.m.s.): 52kV
4. Rated power-frequency withstand (induced) voltage (r.m.s.): 95kV
5. Rated lightning impulse withstand voltage (peak): 250kV
5. Rated frequency: 50Hz or 60Hz
6. Applied standard: IEC 61869-1 &3 (IEC 60044-2)
IEEE C57.13-2016



Specification:

Rated Primary Voltage(kV) Rated Secondary Voltage(V) Accuracy classes combination Rated Burden (VA) Thermal limiting Output (VA)

Rated Insulation Level

(kV)
Measuring Protective

27.6

45/√3

46/√3

50/√3

100/√3

110/√3

115/√3

120/√3

100/3

110/3

115/3

120/3

 0.2 75 700 52/95/250
0.5 150
1 300
0.2/3P 60/200 500
0.5/3P 100/200

























Outline drawing



Multifunctional 52kV Medium Voltage Dry Type Transformer Long Service Life 0

Tag:

medium voltage transformer,

single phase voltage transformer,

medium voltage potential transformer
