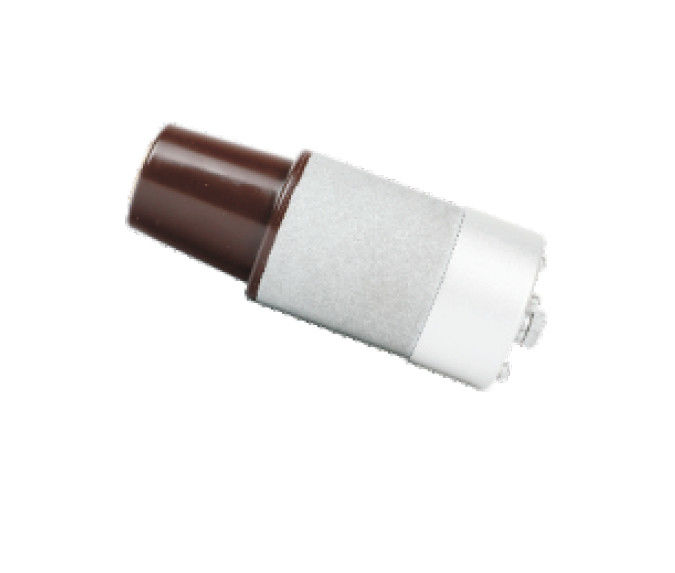

Electric voltage transformer/voltage Sensor/LPVT (Rear-piug Type)





1. Apply to
≤24kV busbar connecting system with screened separable connector



2.Application
♦Voltage sensor apply to voltage measurement of connecting busbar with screened cable connector in medium voltage gas insulation switchgear of smart grid;
♦voltage sensor should be installed in the tail of the screened cable connector to replace the position of original insulation plug.





3.Technical Data:

Model CY-EVTDC1-10 CY-EVTDC1-20
Max. system voltage 12kV 24 kV
Insulation level 12/42/75kV 24/50/125kV
lighting impulse withstand voltage 75kV 125kV

Rated

voltage

ratio

phase voltage (10000/^3)/ (3.25/^3) V (20000/-V3)/ (3.25/^3) V
zero sequence voltage (10000A/3)/ (6.5/3) V (20000A/3)/ (6.5/3) V
Phase voltage- Measuring Accuracy 0.5 0.5

zero sequence voltage-Protection

Accuracy

1 (3P) 1 (3P)
Burden (load resistance) a-IOMO
Rated voltage factor 1.2Un continue /1.9Un/8h
Frequency 50/60 Hz
Operating temperature -40°C to +70°C
LPVT type Phase voltage + Zero sequence VT
Installation method and size rear plug type installation

^xz/R^n1^ oonnector |EC front connector 24kV/630A

15kV/o30A

Full shield on the product surface
Standard

GB/T 20840.7 (GB/T 20840.6)

I EC 60044-7 (I EC 61869-6)

Connecting type aviation plug—lead terminal
Connecting cable RVSP Shield line L = 3 m (length can be customized)

4. Outline Drawing:



Electrical Voltage Transformer  Sensor / LPVT  Rear - Piug Type 0
