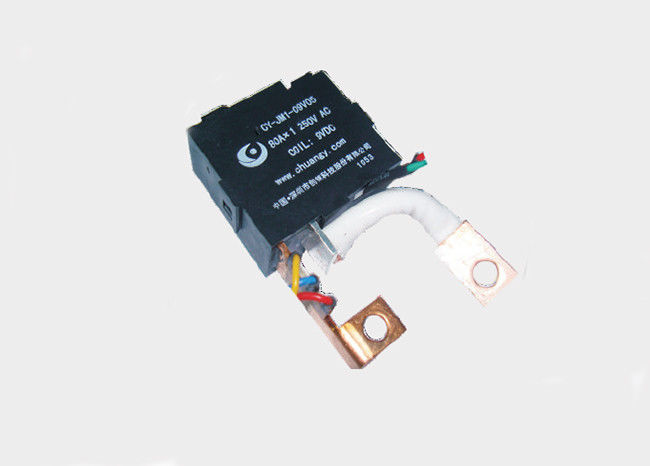

90A Contact Magnetic Latching Relay / 24 Volt Latching Relay

90A Contact Magnetic Latching Relay / 24 Volt Latching Relay

    • 90A Contact Magnetic Latching Relay / 24 Volt Latching Relay
    • 90A Contact Magnetic Latching Relay / 24 Volt Latching Relay
    • 90A Contact Magnetic Latching Relay / 24 Volt Latching Relay
    • 90A Contact Magnetic Latching Relay / 24 Volt Latching Relay
    • 90A Contact Magnetic Latching Relay / 24 Volt Latching Relay
  • 90A Contact Magnetic Latching Relay / 24 Volt Latching Relay

    Product Details:

    Place of Origin: China
    Brand Name: CY-Group
    Certification: UC2, UC3,KEMA, CE, ISO, SGS, TUV, Type Test Report
    Model Number: CY-JMD-09V19

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: Negotiable
    Packaging Details: Plymood
    Delivery Time: 3-8 days
    Payment Terms: L/C, TT,D/A,D/P
    Supply Ability: 3600000pcs/year
    Contact Now
    Detailed Product Description
    Rated Voltage: 6/9/12/24/48 Action Voltage (VDC): Max.38.4
    Max Coil Voltage(V): Max.96 Shock Tolerance: 10-50Hz 1.0mm
    Rated Power: 12+12 Single Coil 1.5W Double Coil 3W Short Time Impact Current: 2500A 10ms No Sinter 4500A 10ms No Explosion

    Latching Relay 90A Part No. CY-JMD-09V19 for energy meter UC2, UC3 Proved/Marked Competitive price



    1. Part Number Description

    90A Contact Magnetic Latching Relay / 24 Volt Latching Relay

    2. Character

    Meet to IEC62055-31-2005—UC2 UC3

    Meet the requirements of anti-frequency magnetic field and magnetic interference in the national network.

    According to RoHS requirements

    Large switching power with mini body

    90A contact switch

    Big strengthof magnetic latching power,anti-shock of vibration

    Pulse drive,economy of power consumption and no heat rising

    Permanent magnetic strength to keep stability,and save power consumption

    Small contact resistance ,and little self-consumption with reliable working



    3. Application

    Electronic energy meter

    Automatic meter reading system

    Lamp controller

    Complex switch

    Home appliance and automatic control equipment



    4. Coil Specification

    Rated voltage Action voltage (VDC) Max coil voltage(V) Coil resistance x(1±10%)Ω Rated power
    Single coil Double coil
    6 4.8 12 24 12+12

    Single coil 1.5W



    Double coil 3W

    9 7.2 18 54 27+27
    12 9.6 24 96 48+48
    24 19.2 48 384 192+192
    48 38.4 96 1536 768+768





    5. Technical Specification



    Contact type 1B(1A) Insulation resistance ≥1000MΩ(500VDC)
    Contact material AgSoO2 Dielectric strength Coil--contact ≥4000VAC 1min
    Contact--contact ≥1800VAC 1min
    Contact load (resistance) 90A 250VAC Action time close ≤20mS
    open ≤20mS
    Contact resistance (mΩ) ≤2mΩ Action impulse duration 50mS-240mS
    Max switching voltage 250VAC Life (time) Electrical life(ops) 1x 104 (circle)
    Mechanical life (ops) 1x 106 (circle)
    Max switching current 90A Max action frequency 1200 ops/h
    Max switching power 22.5KVA Vibration tolerance 98m/s2
    Short time impact current

    2500A 10ms no sinter

    4500A 10ms no explosion

    Shock tolerance 10-50Hz 1.0mm
    Ambient temperature -40℃ to +70℃ Relative humidity 90% RH 40℃



    6. Dimension

    90A Contact Magnetic Latching Relay / 24 Volt Latching Relay



    7. Wiring Diagram

    90A Contact Magnetic Latching Relay / 24 Volt Latching Relay

    Remarks:

    The drawing does not show tolerance. It is subject to below range:

    ≤1mm ±0.2

    1-5mm ±0.3

    ≥5mm ±0.4



    The output terminal in above drawing is for customers’reference only. The dimension and connection way of output terminal can be customerized.
