| Place of Origin: | China |
| Brand Name: | CY-Group |
| Certification: | UC2, UC3,KEMA, CE, ISO, SGS, TUV, Type Test Report |
| Model Number: | CY-JMD-12V11 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plymood |
| Delivery Time: | 3-8 days |
| Payment Terms: | L/C, TT,D/A,D/P |
| Supply Ability: | 3600000pcs/year |
| Rated Voltage: | 6/9/12/24/48 | Max Switching Voltage: | 250VAC |
|---|---|---|---|
| Max Switching Current: | 100A | Action Impulse Duration: | 50mS-240mS |
| Contact Load (resistance): | 60A 250VAC | Relative Humidity: | 90% RH 40℃ |
| Short Time Impact Current: | 3000A 10ms No Sinter 6000A 10ms No Explosion | ||
| High Light: | latching power relay,24 volt latching relay |
||

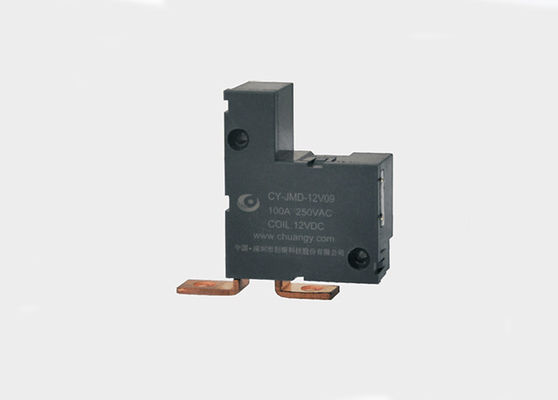

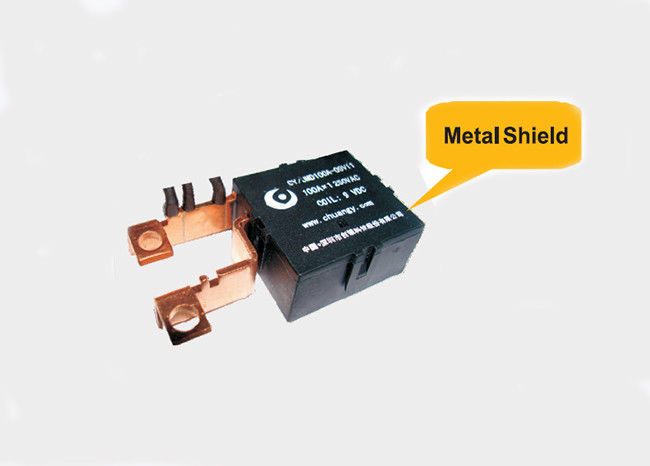

Latching Relay 100A Part No. CY-JMD-12V11 for energy meter Automatic meter reading system Complex switch
1.Part Number Description
2.Character
Meet to IEC62055-31-2005—UC2 UC3
Meet the requirements of anti-frequency magnetic field and magnetic interference in the national network.
According to RoHS requirements
Large switching power with mini body
Big strengthof magnetic latching power,anti-shock of vibration
Pulse drive,economy of power consumption and no heat rising
Permanent magnetic strength to keep stability,and save power consumption
Small contact resistance ,and little self-consumption with reliable working
3. Application
Electronic energy meter
Automatic meter reading system
Lamp controller
Complex switch
Home appliance and automatic control equipment
4.Coil Specification
| Rated voltage | Action voltage (VDC) | Max coil voltage(V) | Coil resistance x(1±10%)Ω | Rated power | |
| Single coil | Double coil | ||||
| 6 | 4.8 | 12 | 24 | 12+12 |
Single coil 1.5W
Double coil 3W |
| 9 | 7.2 | 18 | 54 | 27+27 | |
| 12 | 9.6 | 24 | 96 | 48+48 | |
| 24 | 19.2 | 48 | 384 | 192+192 | |
| 48 | 38.4 | 96 | 1536 | 768+768 | |
5.Technical Specification
| Contact type | 1B(1A) | Insulation resistance | ≥1000MΩ(500VDC) | |
| Contact material | AgSoO2 | Dielectric strength | Coil--contact | ≥4000VAC 1min |
| Contact--contact | ≥1800VAC 1min | |||
| Contact load (resistance) | 100A 250VAC | Action time | close | ≤20mS |
| open | ≤20mS | |||
| Contact resistance (mΩ) | ≤2mΩ | Action impulse duration | 50mS-240mS | |
| Max switching voltage | 250VAC | Life (time) | Electrical life(ops) | 1x 104 (circle) |
| Mechanical life (ops) | 1x 106 (circle) | |||
| Max switching current | 100A | Max action frequency | 1200 ops/h | |
| Max switching power | 25KVA | Vibration tolerance | 98m/s2 | |
| Short time impact current |
3000A 10ms no sinter 6000A 10ms no explosion |
Shock tolerance | 10-50Hz 1.0mm | |
| Ambient temperature | -40℃ to +70℃ | Relative humidity | 90% RH 40℃ | |
6.Dimension
7.Wiring Diagram
Remarks:
The drawing does not show tolerance. It is subject to below range:
≤1mm ±0.2
1-5mm ±0.3
≥5mm ±0.4
The output terminal in above drawing is for customers’reference only. The dimension and connection way of output terminal can be customerized.
